Explanation
What is an Abrasive Wheel? An abrasive wheel is a type of disposable equipment fitted to a tool in order to cut, grind, polish or sharpen another object. Abrasive wheels are made of coarse particles that are held together by a bonding material such as a resin or cement.
What are they used for?
Abrasive wheels are available as a handheld or bench mounted tool and are used used in construction, metalworking, manufacturing, and maintenance tasks. It's a common type of power tool but can be dangerous to use and is the cause of many accidents in the workplace due to unsafe practices and errors.
Below are some common uses of abrasive wheels:
Cutting: Metal, masonry, concrete, and other materials.
Grinding: Removing excess material or smoothing surfaces.
Polishing: Achieving a smooth and shiny finish on metals and other surfaces.
Sharpening: Restoring the cutting edges of tools like blades and drill bits.
Surface Preparation: Cleaning and preparing surfaces for painting or coating by removing rust, old paint, or other contaminants.
The Different Types
There are different types of abrasive wheels used in many tools and designed for specific tasks and materials. Here are the most common:
• Straight Wheels - Generally used for cylindrical, centreless, and surface grinding operations mostly used in workshops.
• Cylinder Wheels - Typically used in the transportation and toolroom industries to remove generous amounts of material from a spinning workpiece, to a high accuracy.
• Brush Wheels - A type of abrasive wheel with a meta wire brush usually used to remove rust and corrosion.
• Tapered Wheels / Flap Disk - Similar to a straight wheel with a depressed centre that tapers outward towards the centre of the wheel, commonly used on angle grinders in order to finish surfaces.
• Straight Sided Cut-Off Wheels - Used to cut through tough material such as steel, commonly used in construction applications.
Abrasive Wheels Markings
All abrasive wheels will be marked with important information as required by the BS EN 12413 and BS ISO 525 British Standards. This includes:
Wheel specification – this indicated which type of abrasive material the wheel is made of, the grit size, grade and the bond type.
Trademark and test record – the wheel’s manufacturer name and proof that the wheel has been tested and meets the safety standards.
Expiry date – organic bonded wheels have an expiry date of 3 years from the date of manufacture.
Code number – a traceable number that provides the manufacturing details of the wheel.
Dimensions – the wheel’s dimension in mm will be clearly marked on the wheel. Three numbers will provide the wheel’s diameter, the thickness and the hole size.
Speed stripes – all wheels with a diameter bigger than 80mm must provide a maximum operating speed. The colour coded stripes on abrasive wheels is called a speed strip and indicates the different speeds available:
Colour | Speed |
Blue | 50m/s |
Yellow | 60m/s |
Red | 80m/s |
Green | 100m/s |
Blue/Yellow | 125m/s |
It is essential that all abrasive wheels in the workplace display the necessary markings prominently. This ensures that employees have access to safe and appropriate machinery that undergoes regular testing. Employers are also responsible for ensuring that these wheels are utilized solely for their designated purposes and within the specified design parameters, guaranteeing that all tasks are performed accurately and safely.

Machines that use Abrasive Wheels
There are many different tools and pieces of machinery that use abrasive wheels. Each machine plays a crucial role in industrial and manufacturing processes, with abrasive wheels enhancing their functionality and efficiency.
Tool and Cutter Grinding Machines - Utilized for the sharpening and shaping of milling cutters, tool bits, and other cutting tools.
Cylindrical Grinders - Designed for shaping the external surface of objects, suitable for objects that have a central rotation axis.
Surface Grinding Machines - Employed for achieving smooth finishes on flat surfaces using a spinning abrasive wheel.
Bench Grinders - Common in workshops, these are used for tasks such as tool sharpening and metal shaping.
Angle Grinders - Versatile handheld tools used for cutting, grinding, and polishing a variety of materials including metal and stone.
Grinders - These machines use two rotating wheels to grind away material from workpieces without the need for centring.
Jig Grinders - Specialized for precision grinding of jigs, dies, and fixtures, these machines use abrasive wheels for fine detailing.

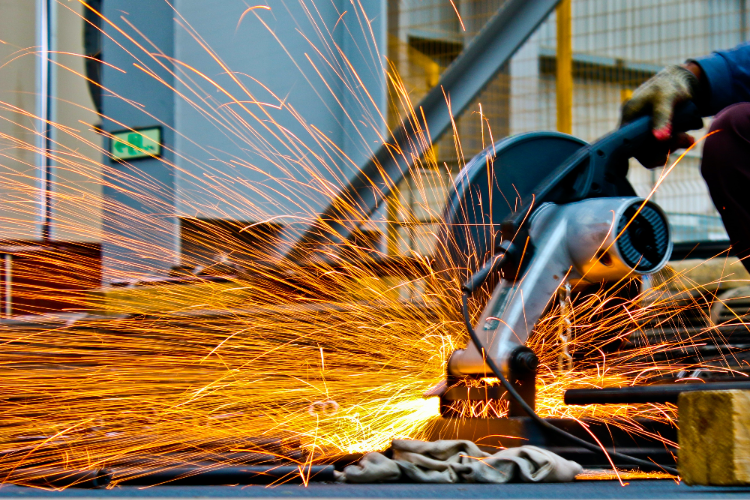

Chop Saws and Cut-off Machines - Typically used to cut through metal or concrete, employing abrasive wheels for the cutting process.
Floor Grinders - Large, walk-behind machines with abrasive wheels for grinding and polishing floors.
Polishing Machines - Used primarily for buffing or polishing surfaces, these may use abrasive wheels to achieve a fine surface finish.
Characteristics of Abrasive Wheels
An abrasive wheel typically consists of abrasive particles bonded together using various substances. Abrasive wheels vary in material, grain size, grade, structure and bond type. There are two primary categories of bonding agents: inorganic and organic.
Different characteristics of abrasive wheels include:
Abrasive Material - This refers to the type of abrasive material used in the wheel’s construction.
Grain/Grit Size - This denotes the size of the abrasive particles, ranging from very coarse to very fine.
Grade - This indicates how firmly the bond holds the abrasive grains. Grades vary from ‘soft’ to ‘hard’, denoted by letters from A (extremely soft) to Z (extremely hard).
Structure - This pertains to the wheel’s porosity level. A higher number indicates greater porosity.
Bond Type - This specifies the type of bonding material used in the wheel’s construction.
What Training is Required?

Abrasive Wheel training is a requirement under the Health and Safety at work act in order to minimize the risk of accident and injury. Abrasive Wheel Training is aimed to give the learner an understanding of the different types of abrasive wheels and their uses. It should also cover the importance of inspecting and testing, mounting and adjustment and emergency procedures in the case of an accident.
Abrasive Wheel Training should cover the following topics:
Anatomy of abrasive wheels
Dangers of abrasive wheels
Abrasive wheels safety
Abrasive wheels markings
Safe speeds
Storage and handling
Checking and testing
Inspections
Online Training Course
Once you have successfully completed our abrasive wheels online course and passed the final assessment which ensures you have a thorough understanding of the material, you will instantly receive an abrasive wheels training certificate.
This is proof that you have completed the abrasive wheels training course and are able to apply your new skills to the job. It is a legal requirement to complete abrasive wheels training online before you can use the tools in the workplace.
How Long Does The Training Last?
The current industry standard is that abrasive wheel training should be refreshed every 3 years minimum to ensure all employees stay up to date and stay safe when working with the abrasive wheels in the workplace.
There is no legal set amount of time in which abrasive wheels training lasts. However, it is largely advised by the Health and Safety Executive (HSE) that the training should be renewed regularly and in certain instances such as the arrival of new equipment or a change in working conditions.

Which Legislation Applies to the Use of Abrasive Wheels?
There are also various abrasive wheels regulations put into place in the Provision and Use of Work Equipment Regulations Act 1998 (PUWER). All UK businesses including self employed people must comply with the regulations or they may be fined if found to be breaching the law. This legislation protects workers and keeps them safe when working with dangerous tools and equipment.
The abrasive wheels regulations state that anyone who uses these tools must have a training certificate, be deemed competent, wear protective equipment and follow COSHH (Control of Substances Hazardous to Health) Regulations and the Control of Noise at Work Regulations 2005.
The PUWER act also ensures that the abrasive wheels in workplaces are regularly maintained and inspected, suitable for its intended use and only used by trained employees.
Risk Assessments and Method Statements
Safety measures are essential when working with abrasive wheels HSE
and a risk assessment needs to be regularly taken to identify any potential hazards or issues, implement safety procedures and reduce the risk of injury. There are 5 steps in a risk assessment:
Identify any hazards Abrasive grinding wheels revolve at extremely fast speeds which can cause hazards such as mechanical, fire and heat, electricity, noise, dust and vibration. Employees need to be aware that loose clothing or jewellery can get caught in the machine which can cause injuries. Flying debris, sudden movements and defective abrasive wheels can also cause injuries and the risks need to be assessed and eliminated.
Determine who can be harmed and how Not only can the wheel harm the operators but it is also at risk of injuring workers in close proximity due to flying debris, dust and noise. Precautions must be made to protect employees and visitors.
Evaluate risks Risk of injury is always high with the involvement of abrasive wheels and so precautions and safety measures must be put into place to reduce the risk. These include:
Only fully trained employees must operate the machinery
No loose clothing or jewellery
Stable footing with no overreaching or risk of slipping
Machine guards must always be in place and never removed
Designated area to avoid flying debris from hitting workers
Wheels must be inspected before every use
Fire extinguisher nearby
Protective equipment must be worn such as face masks, safety shoes, ear protection and gloves
4. Document findings and implement procedures
Employers must document all risks and hazards found along with the relevant precautions taken and safety measures put into place to reduce or eliminate the risks of injury and errors.
5. Review risk assessment and update if required
The risk assessment for abrasive wheels needs to be regularly reviewed, especially when new equipment has arrived or any other changes have occurred in the workplace such as new employees, different procedures or if an accident has happened. The safety measures may have to be updated to maintain the best practices in the workplace.
6. Appropriate Training
The online abrasive wheels course is also essential as employees will learn how to perform a risk assessment, will understand how to identify any hazards and know which safety measures to put in place to heighten the safety and reduce risks in the workplace.

Conclusion
There are many different types of abrasive wheels including grinding wheels, polishers and abrasive flapper wheels that are used to achieve various results. Abrasive wheels are an extremely dangerous piece of machinery and so it is a legal requirement for employees to complete a training course to be able to use the tool.
There are online training courses available and you can also search for “abrasive wheels training near me” to find local onsite training for a practical course hosted in accredited centres. It is so important to receive the training and perform regular risk assessments to ensure the correct safety measures are put into place to reduce the risk of injury when using abrasive wheels at work.
